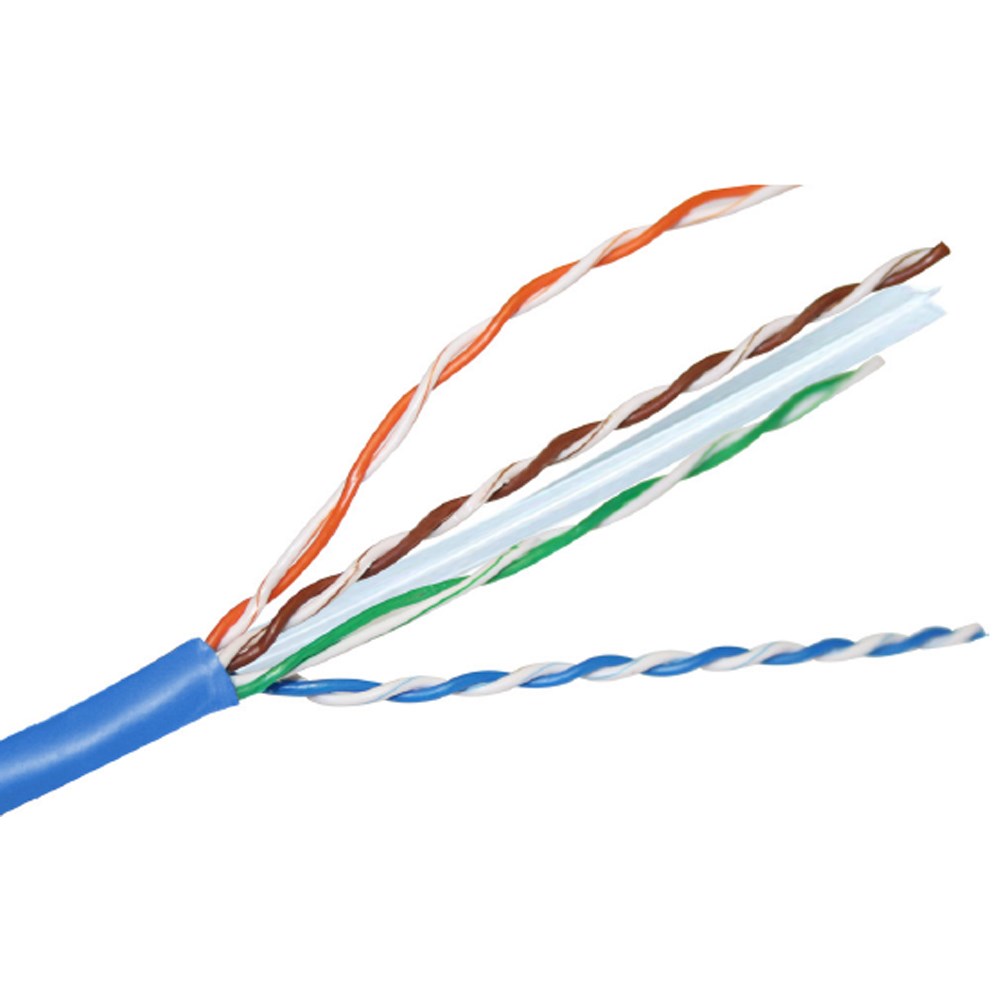

MSS MSSCABLE6U Category 6 U/UTP Copper Cable Blue 305m is an unscreened or unshielded cable that supports CAT 6 link and channel performance. This is an ideal fit for patch panels and RJ45 outlets, resulting in a cabling network with exceptional performance and dependability. Click DATASHEET for further information.
The MSS MSSCABLE6U Category 6 U/UTP Copper Cable Blue 305m is used in generic cabling such as 10Base-T, 100Base-T, 1000Base-T, ATM, Token Ring Designed.
Standard Compliance:
- AS/NZS 11801.1:2019
- ANSI/TIA 568.2-Designed
- UL Subject 444
- ACMA compliance
Construction:
- Conductor: 23AWG annealed bare copper
- Insulation: Polyethylene
- Colour Code: White/Blue - Blue, White/Orange - Orange, White/Green - Green, White/Brown - Brown
- Outlet Jacket: PVC compound (LSZH available upon customer request)
- Overall Diameter: Nominal Diameter 6.0 +/- 0.5mm
- Additional Components: Supplied without ripcord unless specified, Central separator for improved performance
- Printing: Jacket printed Black with legend as per customer requirement
Machanical Characteristics:
- Maximum Pulling Force: 100N
- Minimum Bending Radius: Once installed 4 x 0D, during installation 8 x 0D Nominal
- Weight: 45KG/KM
- Operating temperature: -15° C ̴ +50° C
- Installation temperature: 0° C ̴ +50° C
- Fire Performance PVC: VW1, CMX, CM, CMG, CMR, IEC60332.1.LSZH: IEC60332.1, IEC60332.3
