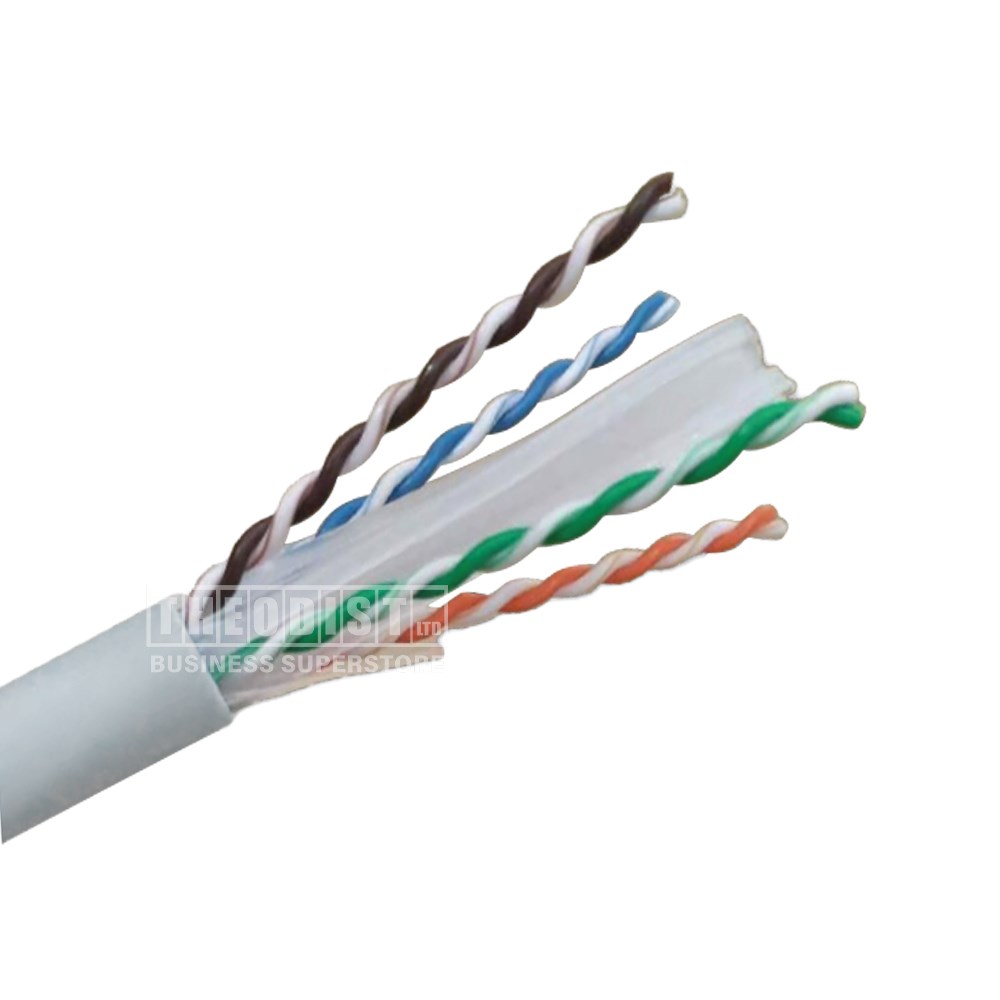

MSS MSSCABLE6AU Category 6A U-UTP Ethernet Copper Cable Grey 305M LSZH is one of the highest-performing cables available today. Exemplifying superior alien crosstalk (ANEXT) performance and electromagnetic immunity while offering 10 Gigabit performance now and for many years to come. Click DATASHEET for further information.
- CAT6A 305 Metre Ethernet Cable with Solid Conductors
- The ideal cat6A cable for running from a patch panel to the wall outlet jack, this solid conductor cable is designed to support Cat6A Link and Channel performance standards set out in AS/NZS 11801.1 and ANSI/TIA 568.2-D
- Featuring 23 AWG bare copper conductors and a central spline separator, this cable supports 10 Gigabit Ethernet.
- Also known as LAN cable, Ethernet Cable, Permanent Link Cable and Network Cable
Frequently Asked Questions:
Is this cable shielded or unshielded?
This cable is unshielded, also known as UTP which stands for Unshielded Twisted Pairs.
Can I use this cat6A cable with cat6 jacks or patch panels?
Yes. You can use Cat6A cable with Cat6 jacks or patch panels, however, the performance of the cable will be limited by the lower performance of the cat6 components.
Can I make patch leads or patch cords with this Cat6A cable?
Yes, however a cable with stranded conductors, also known as patch cord cable is the best option as it is more flexible and designed to be moved. Solid conductor cables such as this one, are designed for permanent installations where they are not moved.
Construction:
- Conductor: 23AWG annealed bare copper
- Insulation: Polyethylene
- Colour Code: White/Blue - Blue, White/Orange - Orange, White/Green - Green, White/Brown - Brown
- Outer Jacket: LSZH or PVC compound upon customer request
- Overall Diameter: Nominal Diameter 8.0+/- 0.5mm
- Printing: Jacket printed Black with Legend as per customer requirement
