The VideoMic NTG is a broadcast-grade, feature-packed shotgun microphone optimised for on-camera use. It features the same revolutionary acoustic design as the NTG5 broadcast shotgun microphone, which delivers unmatched transparency and a natural, uncoloured sound. Add to this an incredibly flat frequency response, highly directional super-cardioid polar pattern, and very low self-noise, and what you have is a compact on-camera microphone that contends with the world’s best shotgun mics.
As well as sounding outstanding, the VideoMic NTG is extremely flexible, with an array of tools and features to help you take on any recording situation. Digital switching gives you access to a high-pass filter, -20dB pad, high-frequency boost, and safety channel, plus there is a unique infinitely variable gain control that allows you to precisely tailor the output as you need. Its auto-sensing 3.5mm output detects what device you are connected to (camera or mobile) and switches to accommodate – no more messing around with adaptor cables! There is also a handy new dB peak warning light, so you can always ensure your audio isn’t clipping.
The VideoMic NTG is so much more than just an on-camera mic. As well as pairing perfectly with DSLRs, compact cameras, and smartphones – either on-camera, as a boom mic, or on a pistol grip – it is also a fully-featured USB microphone that can be plugged into a computer, tablet, or smartphone. On top of this, the 3.5mm jack doubles as a headphone output for seamless monitoring of audio while using the USB output.
The VideoMic NTG is officially MFI-certified (Made for iPhone, iPad & iPod). To connect your VideoMic NTG to Lightning-equipped iOS devices, you’ll need the SC15 or SC19 cable. Please make sure your VideoMic NTG firmware is up to date to ensure complete compatibility with iOS devices with the SC15 or SC19. Download the latest firmware here.
- Revolutionary acoustic design, delivering unmatched acoustic transparency and a natural, uncoloured sound.
- Highly directional super-cardioid polar pattern and very flat frequency response
- Unique infinitely variable gain control
- Auto-sensing 3.5mm output interacts seamlessly with both cameras and mobile devices
- Class-compliant USB-C output with a headphone output for seamless audio monitoring
- Digital switching – controls high-pass filter, pad, high-frequency boost, and safety channel
- dB peak warning light
- Internal rechargeable lithium-ion battery provides 30+ hours of recording, charges via USB-C

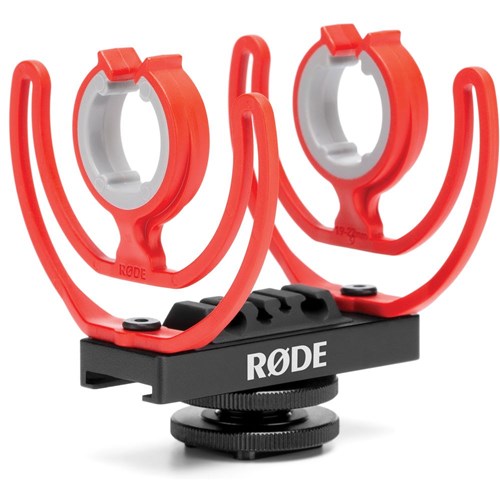

- High-quality Rycote® Lyre® shock mounting with cable management and a sliding rail to adjust mic placement on a camera cold shoe.
- Lightweight (94g) and rugged aerospace-grade aluminium construction
Acoustic and Electrical Specifications
Acoustic Principle: Pressure gradient electret condenser
Polar Pattern: Supercardioid
Frequency Range: 20Hz – 20kHz
Frequency Response: 35Hz – 18kHz ±3 dB
Output Impedance: 10Ω
Signal to noise Ratio: 79 dBA
Dynamic Range: 105dB SPL (A-weighted, as per IEC651)
Equivalent Noise: 15dB SPL (A-weighted, as per IEC651)
Sensitivity: -26 dB re 1V/Pa (50mV @ 94dB SPL) ± 1dB @ 1kHz
Input SPL @ 1% THD: 120dB SPL
High Pass Filter Frequency: 75Hz, 150Hz
Battery Life: 30+ hours
Battery Capacity: 350mAh
Output Connection: 3.5mm auto-sensing USB-C
Bit Depth: 24-bit
Sample Rates: 48kHz
OS Requirements: Mac OS 10.12, Windows 10
Mechanical Specifications
Weight (g): 94
Diameter: 21.6mm
Length: 171mm
