Double Shielding CAT6a Blue Patch Lead 1.5m
Category 6A (CAT6 Augmented) is defined at frequencies of up to 500Mhz, twice that of CAT6.
At these high speeds cross talk, in particular alien cross talk, present a significant issue to reliable operation.
Shielding is particularly critical in environments with increased levels of noise such as hospitals, telco operations infrastructure, radio and television broadcast applications, X-ray theatres and in the vicinity of mains power transmission lines, switchyards and substations. Click DATASHEET for more information.
Hypertec’s range of shielded CAT6a now includes:
- Keystone jacks
- Keystone couplers
- Unloaded keystone patch panels
- Solid conductor cable
- Patch leads

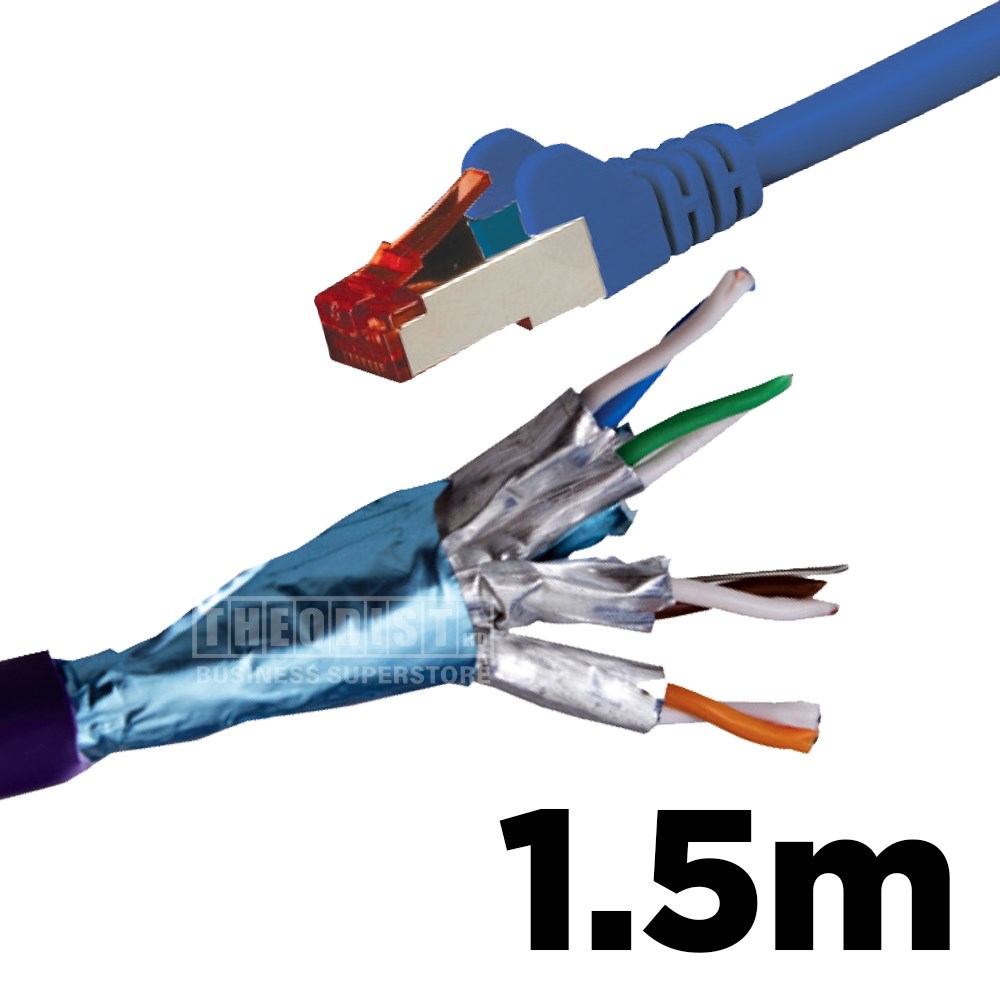

Hypertec Shielded CAT6A Patch Lead cables feature double shielding where individual twisted pairs are foil shielded before a final braided wire shield is wrapped around the complete cable bundle. All these shields are connected to the metal frame, which is an integral component of the Hypertec RJ connector.
Features and Benefits:
- Individually tested to ensure Cat6a component level compliance
- Fully shielded to minimise noise and ensure Cat6a performance is met
- Backward compatible with Cat5, Cat5E and Cat6
- Toolless termination of jacks reduces installation time
- Ground wire kit is included with patch panel for quick and easy earthing
- Patch leads are overall and individually shielded S/FTP for maximum Cat6a performance
Conformant Standards:
- A-Tick certified
- ETL conformant to TIA/EIA 568-C
- ISO/IEC 11801 & EN 50288
- ROHS Compliant
Specifications: Shielded Patch Lead
- Pack quantity: 1
- Wiring Scheme: T568A
- Shielding: Individually shielded pairs of S/FTP
- Jacket material: LSZH
- Conductor size: 26AWG (7 strands)
- Conductor Material: Bare Copper
- Fully moulded strain relief boots
- Lead Diameter: 6.0mm nominal OD
Technical Specifications:
- Patch Lead Length (M): 1.5
- TIA 568 Category: Cat6A
- Jacket Diameter (mm): 6
- ISO 11801 Class: Class EA
- Shielded: Yes
- TIA 568 Wiring Scheme: T568A
- Cable Jacket Material: LSZH - Low Smoke Zero Halogen
- Conductor Material: Bare Copper
- Patch lead Colour: Blue
- Number of Pairs: 4
- Connector end A: RJ45
- Connector end B: RJ45
