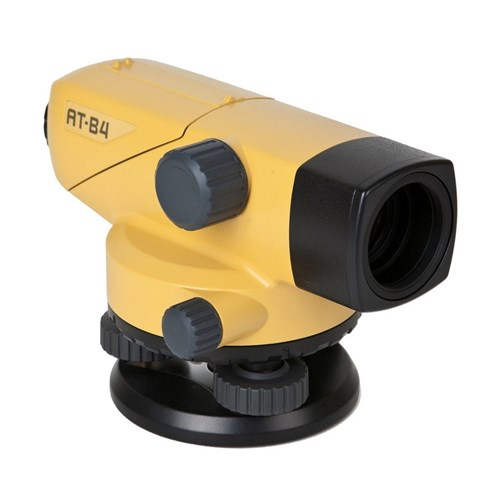

Topcon AT-B4 24X Magnification Auto Level

ATB4
K1,600.00 inc GST
Please send any quote requests through the Contact Us page
In Stock Low Stock Out Of Stock Please See Attributes
Qty Each Save %
Features
  • Telescope: 24X magnification, 32mm objective aperture, 215mm length
  • Accuracy: 2.0mm without micrometer
  • Compensator: Pendulum type with magnetic damping system
  • Circular Level: Sensitivity of 10 ft./2mm
  • Horizontal Circle: Diameter of 103mm, minimum division of 1°/1gon
  • Water Resistance: IPX6
Product Description

Topcon AT-B4 24X Magnification Auto Level: Precision and Durability

Introducing the Topcon AT-B4 Auto Level, a reliable and high-performance instrument designed for demanding surveying applications.

Key Features:

  • Rapid and Accurate Automatic Compensation: Benefit from the AT-B4's advanced magnetic damping system, which ensures a quick levelling and stable line of sight, even in challenging conditions.
  • Weatherproof Construction: With IPX6 protection, the AT-B4 is resistant to powerful water jets and driving rain, making it ideal for outdoor use.
  • Versatile Angle Measurement: Easily read horizontal angles in 1° or 1gon units and take advantage of the free rotation feature for accurate measurements from any starting point.
  • Ultra-Short Focusing Distance: The AT-B4's 20cm minimum focus distance allows for precise measurements in confined spaces.
  • Durable and Dependable: Built to last, the AT-B4 offers exceptional durability and reliability, making it a valuable asset for any surveying professional.

Unmatched Precision and Reliability
The AT-B4's compensator features four suspension wires made of high-tensile metal, ensuring minimal thermal expansion and exceptional accuracy. The magnetic damping system further enhances stability, even in environments with vibrations.

Versatile Angle Measurement
The AT-B4's horizontal circle allows for direct reading of angles in 1° or 1gon units. The free rotation feature provides flexibility in measurements, while the covered circle protects against dirt and scratches.

Ultra-Short Focus Distance
With a minimum focus distance of 20cm, the AT-B4 can easily focus on objects close to the instrument, making it ideal for confined spaces and detailed measurements.

Invest in the Topcon AT-B4 Auto-Level
If you're seeking a reliable, accurate, and durable auto level for your surveying needs, the Topcon AT-B4 is an excellent choice. Its advanced features, combined with its rugged construction and precision performance, make it a valuable asset for professionals in various industries.

Telescope:

  • Length: 215mm (8.46 in.)
  • Magnification: 24X
  • Objective Aperture: 32mm (1.26 in.)
  • Resolving Power: 4 in.
  • Field of View: 1°25’ (at 100m/328ft.)
  • (at 100m/328ft.): (2.5m/8.2 ft.)
  • Min. Focus from the end of the telescope: 0.2m (7.9 in.)
  • Min. Focus from instrument centre: 0.3m (1 ft.)
  • Image: Erect
  • Stadia Constant: 0
  • Stadia Ratio: 100
  • Focusing Knob: 1-speed
  • Sighting Aid: Gun Sight

Accuracy:

  • Without Micrometer: 2.0mm (0.08 in.)
  • With Micrometer: n/a

Compensator:

  • Type: Pendulum compensator with magnetic damping system
  • Setting Accuracy: 0.5 in.
  • Working Range: ±15 ft.
  • CIRCULAR LEVEL: AT-B4
  • Sensitivity: 10 ft./2mm
  • HORIZONTAL CIRCLE
  • Diameter: 103mm (4.1 in.)
  • Minimum Division: 1°/1gon
Technical Specifications
Brand Topcon
Product Type Automatic Levels
Dimensions 215mm X 130mm X 135mm
Weight 1.7kg
