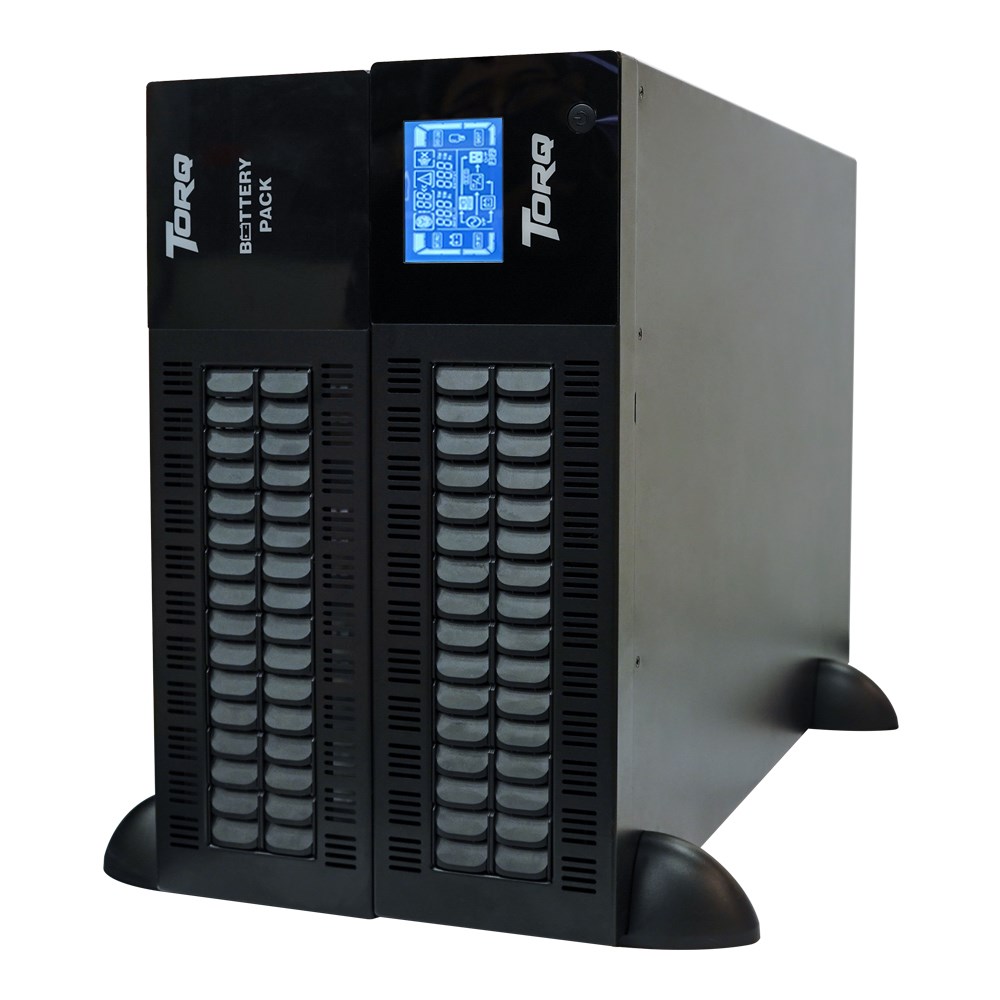

Torq TQSR-R10000 Online Rack UPS 10000VA/10000W with LCD, Battery Pack

TQUPSG10KVA
K16,250.00 inc GST
Please send any quote requests through the Contact Us page
In Stock Low Stock Out Of Stock Please See Attributes
Features
  • Type: Online Rack UPS
  • Capacity: 10000VA / 10000W
  • Nominal Voltage: 208/ 220/ 230/ 240VAC
  • Input Voltage Range: 110~300VAC ± 3% at 50% load, 176~300VAC ± 3% at 100% load
  • Output Voltage: 208*/ 220/ 230/ 240 VAC
  • Waveform (Batt. Mode): Pure Sinewave
  • Software: ViewPower
1 Year
Product Description

The Torq TQSR-R10000 Online UPS 10000VA/10000W with LCD and Battery Pack is predestined to protect servers and sensitive IT infrastructure from voltage fluctuations and outages preventing critical data loss and costly downtime, and protecting the connected devices from damage.

UPS Specifications:

  • Model: TQSR-R10000
  • Type: Online UPS
  • Capacity: 10000VA / 10000W
  • UPS Dimensions: 680x131x438mm
  • Management: Smart RS-232 or USB
  • Software: ViewPower

Battery Pack Specifications:

  • Battery Bank
  • Model: TQSR-R6000/10000
  • Output: ±120VDC, 63A MAX
  • Capacity: 9Ah
  • Battery Type: 12V/9Ah*20
  • Battery Pack Dimensions: 610x131x438mm

With the UPS management software ViewPower, you can monitor and manage one to multiple UPSs in a networked environment, either LAN or Internet. It can not only prevent data loss from power outages and safely shutdown systems but also store programming data and schedule shutdown UPSs,, which is why it is perfect for home users and enterprises.

ViewPower Management Software:

  • Monitor and manage the local UPS connected to the local computer
  • Monitor and manage other UPSs (with software installed) in the LAN
  • Remotely monitor and manage other UPSs via the Internet from a remote PC (with software installed)
  • Allows control and monitoring of multiple UPSs via LAN and Internet
  • Real-time dynamic graphs of UPS data (voltage, frequency, load level, battery capacity)
  • Safely OS shutdown and protection from data loss during power failure
  • Warning notifications via audible alarm, pop-up screen, broadcast, mobile messenger, and e-mail
  • Scheduled UPS on/off, battery test, programmable outlet control, and audible alarm control
  • Password security protection and remote access management

Rear Panel:

  1. External Maintenance Bypass Switch Port

  2. USB Communication Port

  3. Emergency Power Off Function Connector (EPO connector)

  4. Share Current Port (only available for parallel mode)

  5. Parallel Port (only available for parallel mode)

  6. Intelligent Slot

  7. External Battery Connector

  8. Line Input Terminal

  9. Output Terminal

  10. Bypass Input Terminal

  11. Input Grounding Terminal

  12. Output Grounding Terminal

  13. RS-232 Communication Port

Capacity: 10000 VA/ 10000W

Input:

  • Nominal Voltage: 208/ 220/ 230/ 240 VAC
  • Input Voltage Range: 110~300VAC ± 3% at 50% load, 176~300VAC ± 3% at 100% load
  • Frequency Range: 46Hz~ 54Hz or 56Hz~64Hz
  • Power Factor: ≥ 0.99 @ Nominal Voltage (100% load)

Output:

  • Output Voltage: 208*/ 220/ 230/ 240 VAC
  • Voltage Regulation: ±1%
  • Frequency Range (Synchronize Range): 46Hz~54Hz or 56Hz~64Hz
  • Frequency Range (Batt. Mode): 50Hz±0.1Hz or 60Hz±0.1Hz
  • Current Crest Ratio: 3:1
  • Harmonic Distortion: ≤1% THD (Linear Load), ≤4% THD (Non-linear Load)
  • Transfer: 0ms
  • Time: 0ms
  • Waveform (Batt. Mode): Pure Sinewave
Technical Specifications
Brand Torq
Product Type Online Rack UPS
Colour Black
Material Metal Case
Dimensions 680mm X 131mm X 438mm
Warranty 1 Year
Model TQSR-R10000
Output 208*/ 220/ 230/ 240 VAC
Rated Capacity 10000VA/10000W
