AtomX Cast Streaming & Switching Dock for Atomos Ninja V/V+

ATOMXCST01
K750.00 inc GST
Please send any quote requests through the Contact Us page
In Stock Low Stock Out Of Stock Please See Attributes
Features
  • Streaming & Switching Dock for Atomos Ninja V/V+
  • Ninja V/V+ are not included
Product Description

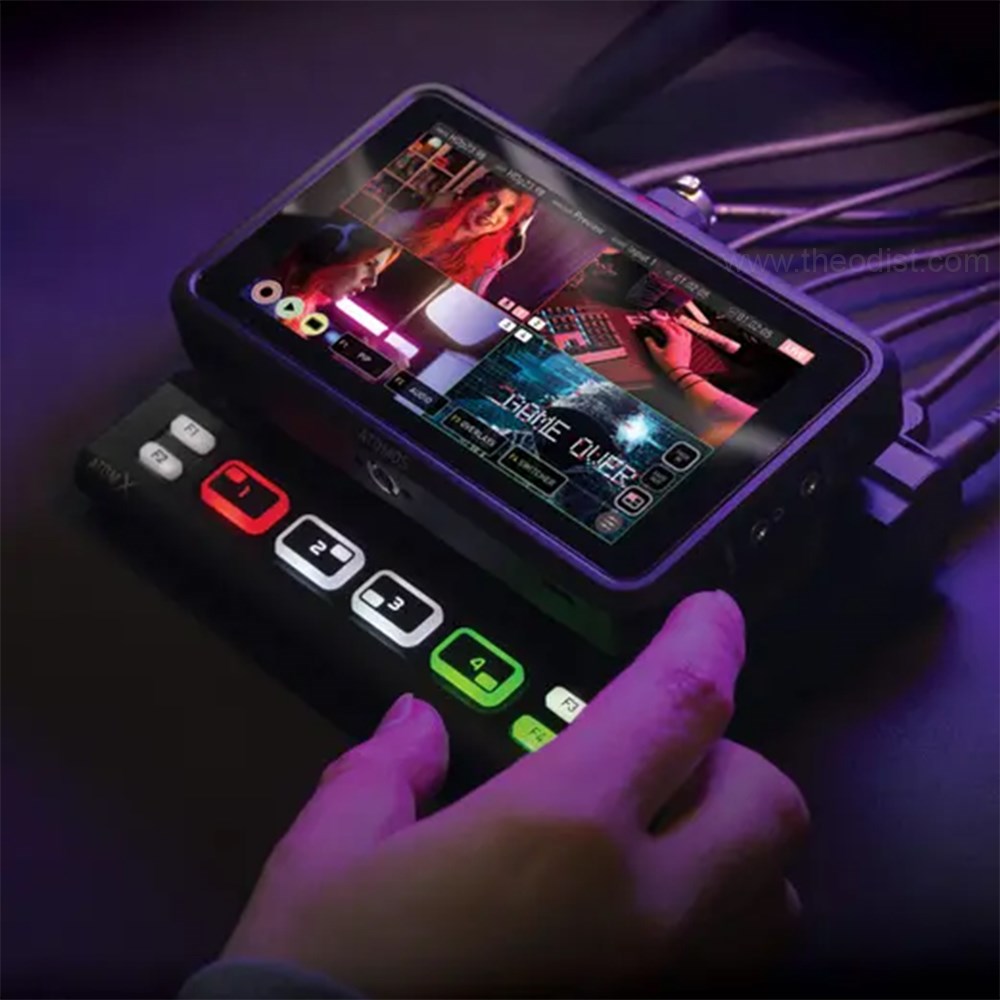

AtomX Cast: Transform Your Ninja V/V+ into a Versatile Live Production Hub

Elevate your live streaming and switching games with the AtomX Cast. This innovative device turns your Atomos Ninja V or V+ into a powerful 4-input HDMI switcher capable of handling up to 1080p60 video.

Effortlessly stream professional-quality video to your favourite platforms with plug-and-play simplicity. The AtomX Cast functions as a high-quality webcam, complete with embedded audio, eliminating the need for complex setups.

Create engaging content with the Picture-in-Picture feature, allowing you to combine up to four HDMI inputs for dynamic presentations, product demos, or online teaching.

Enjoy intuitive control through the Ninja V/V+'s touchscreen and tactile buttons, complete with color-coded indicators for easy source management.

Add a professional touch with custom graphics overlays, including logos and lower thirds, directly from your Ninja V/V+.

Capture broadcast-quality recordings of your final output to the docked Ninja V/V+ SSD using industry-standard codecs like Apple ProRes or Avid DNx.

Note: The AtomX Cast is a standalone device and does not include the Ninja V or V+.

AtomX Cast, Atomos Ninja V, Atomos Ninja V+, HDMI switcher, live streaming, webcam, Picture-in-Picture, video production, broadcast quality, plug-and-play.

Physical:

  • Dimensions (W x H x D mm): 129mm x 49mm x 160mm / 5.1" x 1.9" x 6.3" (without Ninja attached)
  • Weight: 485 g / 1.06 lb (without Ninja attached)
  • Mounting Points: Bottom: 1 x 1/4"20 or 3/8" with anti-rotational points
  • Construction & Control:
  • Body: ABS Polycarbonate with Locking Arm for Ninja, Ninja Ultra, Ninja V, Ninja V+
  • Cooling: Passively cooled
  • Tally Light: Record Tally on Ninja Screen – Program & Preview Illumination on AtomX Cast Buttons
  • Control Buttons: 4 x Input Switching Buttons & 4 x Function Buttons
  • AtomXpansion slot: Connecting to Ninja, Ninja Ultra, Ninja V, Ninja V+ (No Module Passthrough)

Power:

  • Input Voltage: 6.2V to 16.8V
  • DC-In Connector: Locking DC Jack (5.5mm OD & 2.1mm ID)
  • D-Tap: Via optional D-Tap to DC-Barrel Cable
  • Video Input:
  • HDMI: 4 x HDMI (1.4b)
  • Bit Depth: 8/10-Bit
  • Video Chroma Subsampling: YCbCr 4:2:0 & 4:2:2

Video Output:

  • HDMI (on Cast): 1 x HDMI (1.4b) (Program Output only)
  • HDMI (on Ninja): 1 x HDMI – Program, Preview, Multiview Output
  • Video Chroma Subsampling: 4:2:2
  • Bit Depth: 10-Bit
  • Web Streaming:
  • USB UVC: via USB-C

Audio In/Out:

  • Audio Quality: 24-Bit / 48kHz
  • Audio Codec: PCM
  • HDMI: 2ch 24-Bit, Input dependent
  • Analog Audio in: 3.5mm Jack (on Ninja)
  • Analog Audio Out / Headphone Jack: 3.5mm Jack (on Ninja)
  • Resolution & Frame Rates:
  • FHD 1920 x 1080 Progressive: up to 1080p60
  • FHD 1920 x 1080 PsF: Not Supported
  • FHD 1920 x 1080 Interlaced: Automatic Pulldown to Progressive
  • 1280 x 720p: Not Supported
  • SD PAL / NTSC: Not Supported
  • Recording Codecs (via Ninja):
  • Apple ProRes: HQ, 422, LT (Program Recording only)
  • Avid DNxHD: 220x, 220, 145, 36 (Program Recording only)

Recording Functions:

  • Switched Program Recording: Supported (via Ninja)
  • Multi-Input / Switching:
  • Multiple HDMI Input: up to 4 x HDMI up to 1080p60
  • Multiview Display: Quad-Input-Display(via Ninja)
  • Multiview Ouput: Supported (via Ninja's HDMI Output)
  • Picture in Picture (PIP): Any Input over Any Input – 4 Postions & 2 Sizes
  • Graphic Overlays: Upload custom 1920 x 1080 PNG graphics. Alpha transparency is supported. Can be used simultaneously with PiP.
  • Media Pool Storage: Upload up to 8 PNG Graphics (via Ninja)
  • Input Frame Rate Processing: Define fixed Program Frame Rate & Match other Inputs to it

Supported Media:

  • Master Caddy I: Not Supported
  • Master Caddy II: Supported
  • Master Caddy III: Supported
  • SSDmini: Supported (AtomX SSDmini Handle required)
  • File System: exFAT (via Ninja)

What’s in the box:

  • Box Contents: 1 x AtomX CAST,1 x USB-C Cable, 1 x SSDmini Handle Adapter
  • Optional Extras: USB-C Docking Station, D-Tap to DC Barrel Cable
  • Host Device: Requires Ninja, Ninja Ultra, Ninja V, Ninja V+
Technical Specifications
Brand Atomos
Product Type Studio & Production Equipment
Colour Colour
Dimensions 129mm X 49mm X 160mm
Use Streaming & Switching Dock
