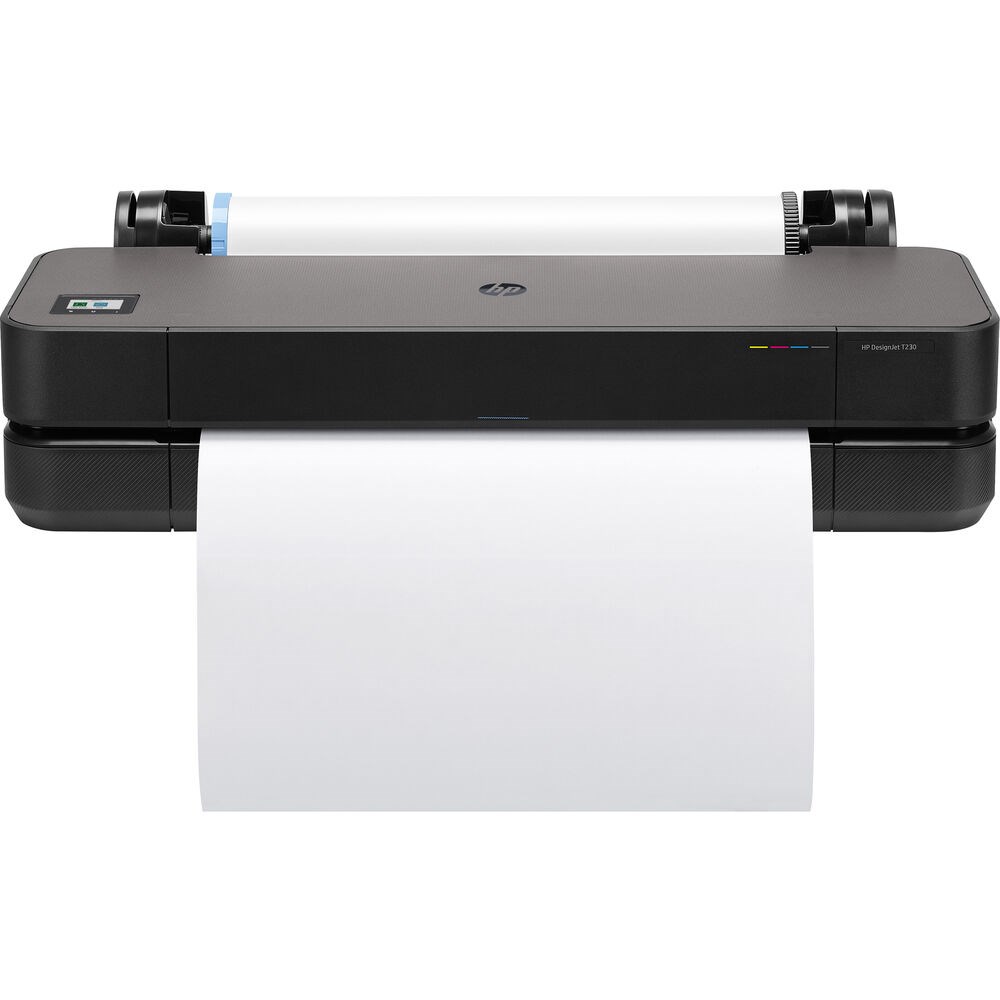

HP DesignJet T230 24" Large Format Wireless Plotter Printer

HPT230
K5,800.00 inc GST
Please send any quote requests through the Contact Us page
In Stock Low Stock Out Of Stock Please See Attributes
Features
  • Functions: Print
  • Up to 2400 x 1200 optimized dpi resolution
  • Dye-based (C, M, Y) and pigment-based (K) ink cartridges
  • Gigabit Ethernet, Hi-Speed USB 2.0, Wi-Fi connectivity
  • 512 MB memory
  • Automatic horizontal cutter
  • ENERGY STAR® certified and EPEAT® registered
Product Description

HP DesignJet T230: The Smallest Plotter for Big Ideas (24-inch Wide)

Unleash exceptional precision and efficient printing with the HP DesignJet T230, a wireless large-format plotter designed for AEC, GIS, and MCAD professionals.

Unmatched Simplicity & Speed:

  • Effortless Workflow: Send multiple files for printing in a single click using HP Click software.
  • Intuitive Control: Print with confidence thanks to a user-friendly driver and true print preview.
  • Blazing-Fast Printing: Produce A1/D plots in just 35 seconds, maximizing productivity.
  • Multi-size Printing: Print on a range of media sizes, including rolls up to 24 inches wide (with an optional accessory).

Space-Saving & Budget-Friendly:

  • Compact Design: The world's smallest plotters, ideal for any office environment.
  • Reduced Ink Consumption: Save up to 95% less ink for routine maintenance compared to competitors.
  • Sustainable Choice: Eco-conscious design featuring up to 30% recycled plastic and free, convenient ink cartridge recycling.

Fits Your Workflow:

  • Mobile Printing: Print and manage jobs from virtually anywhere with the HP Smart app.
  • Exceptional Print Quality: HP Bright Office Inks deliver outstanding line accuracy and a vibrant colour gamut.
  • Diverse Media Compatibility: Print on various media types, including bond paper, technical paper, and film.
  • Invest in the HP DesignJet T230 and experience a perfect blend of simplicity, speed, affordability, and exceptional results for all your large-format printing needs.

Disclaimer:

  • This HP DesignJet T230 uses dynamic security measures to block cartridges using non-HP chips or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures.
  • Functions: Print
  • Print speed, maximum: 35 sec/page on D, 68 D prints per hour[1]
  • Resolution (colour): Up to 2400 x 1200 optimized dpi
  • Print Technology: HP Thermal Inkjet
  • Number of print cartridges: 4 (C, M, Y, K)
  • Compatible ink types: Dye-based (C, M, Y); pigment-based (K)
  • Print languages: JPEG, URF
  • Connectivity, standard: Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct
  • Memory, standard: 512 MB
  • Hard disk: None
  • Non-printable area (cut-sheet): 0.2 x 0.2 x 0.2 x 0.7 in (manual feed); 0.2 x 0.2 x 0.2 x 0.2 in (input tray)
  • Line accuracy: ±0.1%[3]
  • Maximum optical density (black): 8 L* min/2.10 D[4]
  • Finished output handling: Sheet feed, roll feed, automatic horizontal cutter
  • Media sizes supported: A, B, C, D
  • Media sizes supported: A4, A3, A2, A1
  • Media sizes, custom: 8.3 x 11 to 24 x 74.7 in
  • Media types: Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semi-gloss, polypropylene), self-adhesive (adhesive, polypropylene)
  • Media sizes, standard: 11 to 24 in
  • Roll external diameter: 3.9 in
  • Media thickness: Up to 11.8 mil
  • Power: Input voltage (auto-ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max
  • Power consumption: <35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)
  • Operating temperature range: 41 to 104ºF
  • Software included: HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant
  • Dimensions (W X D X H): 39.9 x 17.3 x 11.2 in
  • Weight: 47.4 lb
  • Package weight: 61.7 lb
  • Recommended Media: HP Universal Bond Paper (FSC® certified) (recyclable);HP Coated Paper (FSC® certified) (recyclable);HP Heavyweight Coated Paper (FSC® certified)(recyclable)

What's in the box: HP DesignJet T230 24-in Printer, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord

Technical Specifications
Brand HP
Product Type Large Format Plotter
Colour Black
Dimensions 39.9in X 17.3in X 11.2in
Functions Print
Paper Size A1/D plot
Weight 47.4 lb
